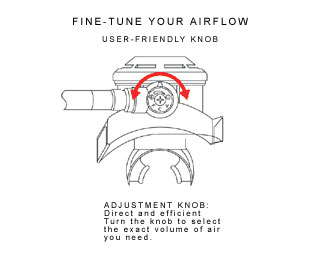

FLOW VOLUME CONTROL
You control the flow. The easily-accessible, large-sized knob on the bottom of the second stage allows convenient one-handed operation. You control your desired flow of air--anytime you like--according to your lung capacity, breathing pattern, or depth in water.
During your dive, your workflow may increase and, as more airflow is needed, the FLOW VOLUME CONTROL can be adjusted to meet your requirements. As you go deeper, the FCV uniquely gives you instant access.
The highly advanced FVC also aids in providing you smooth breathing. By minimizing any initial breathing resistance (which can normally occur when you inhale), the FCV does double work. |
|

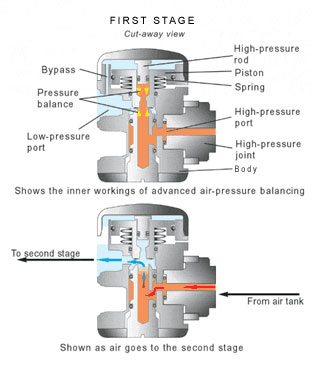

ADVANCED
TWIN PISTON SYSTEM
Besides giving you
great breathing performance, the DeepLimit's Twin Piston System (TPS) first stage incorporates plenty
of extra ports. Two low-pressure ports are specifically dedicated to the second
stage thereby significantly enhancing your airflow. In order to help you reduce jaw fatigue, DeepLimits offer a softer-than-normal hose. The
DeepLimit meets EN standards and is available in three models
including corrosion resistant (longlasting), lightweight titanium.
Two low pressure ports on the first stage ensure smoother breathing via a venturi boost.
The second stage offers advanced flow control adjustability, exhalation
deflection (exhaust bubbles are directed away from the front of
your face), an excellent ergonomic mouthpiece bite, and minimal
breathing resistance without uncontrollable free-flow, even at
the surface. You get all this! Smooth regulators.

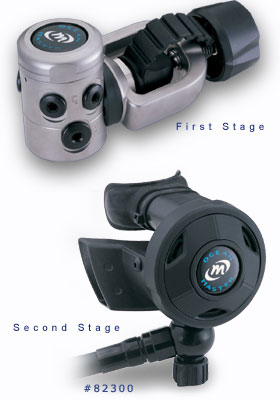

All-Titanium
Price:
$1,200.00
Precision-machined.
Half the weight of brass. Corrosion resistant.
SPECIFICATIONS
FIRST STAGE
Pressure reduction system ...... Balanced Twin Piston
Maximum pressure ................................. 3,625 PSI
Low-pressure ports (LP/PLP) .............. Four (3/8"-24)
High-pressure port (HP) ................... Two (7/16"-20)
Operating temperature range ............. 41° to 122° F
Type of material ... Titanium (body, internal, & yoke)
Weight ...................................................... 17 OZ
Height ..................................................... 2.48 IN
Tank Pressure Intermediate Pressure
3,000 PSI ......................................... 135-139 PSI
300 PSI ............................................ 138-142 PSI
SECOND STAGE
Adjustable flow volume control system
Downward valve diaphragm design
Operating temperature range ............ 41° to 122° F
Type of material ............ Main part case: POM resin
Front cover: ABS Resin
Mouthpiece: Silicone Rubber
Internal & Lever: Titanium
Weight (including hose) ............................. 13 OZ

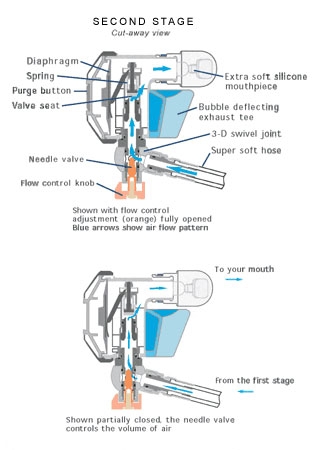

INNOVATIVE
SECOND STAGE The Deep Limit second stage incorporates
an advanced downstream valve diaphragm design for low inhalation
effort.
The highly advanced
FLOW VOLUME CONTROL, located conveniently below the second
stage (for left- or right-handed use), allows you to adjust the flow of air with a simple twist. You'll get an adjustment that is finer-tuned.

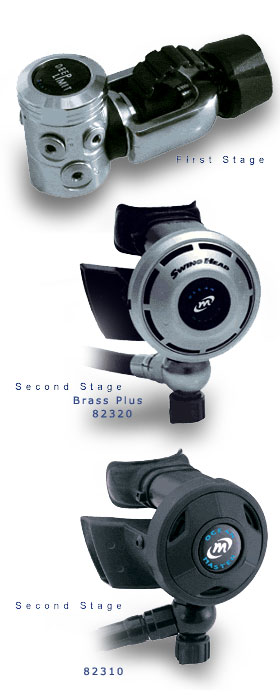

Brass
Plus
Not available in the U.S.
Brass
Classic
Not available in the U.S.
Sleek chrome plating on the BRASS PLUS complements the high performance features of this world-class regulator. Or, if you like the hard core navy look, the Brass Classic will be your choice. Whichever model you choose, you'll be the envy of the dive.
SPECIFICATIONS
FIRST STAGE
Pressure reduction system ...... Balanced Twin Piston
Maximum pressure ................................. 3,625 PSI
Low-pressure ports (LP/PLP) .............. Four (3/8"-24)
High-pressure port (HP) ................... Two (7/16"-20)
Operating temperature range ............. 41° to 122°
F
Type of material ...... Brass (body, internal, & yoke)
Weight ......................................................
28 OZ
Height ..................................................... 2.48
IN
Tank Pressure Intermediate
Pressure
3,000 PSI ......................................... 135-139 PSI
300 PSI ............................................ 138-142 PSI
SECOND STAGE
Adjustable flow volume control system
Downward valve diaphragm design
Operating temperature range ............ 41° to 122° F
Type of material ............ Main part case: POM resin
Front cover: ABS Resin
Mouthpiece:
Silicone Rubber
Internal & Lever: Brass
Weight (including hose) ............................. 14 OZ
To order call
(562)552-2739
|
